1. Introduction

1.1 Description

Functions:

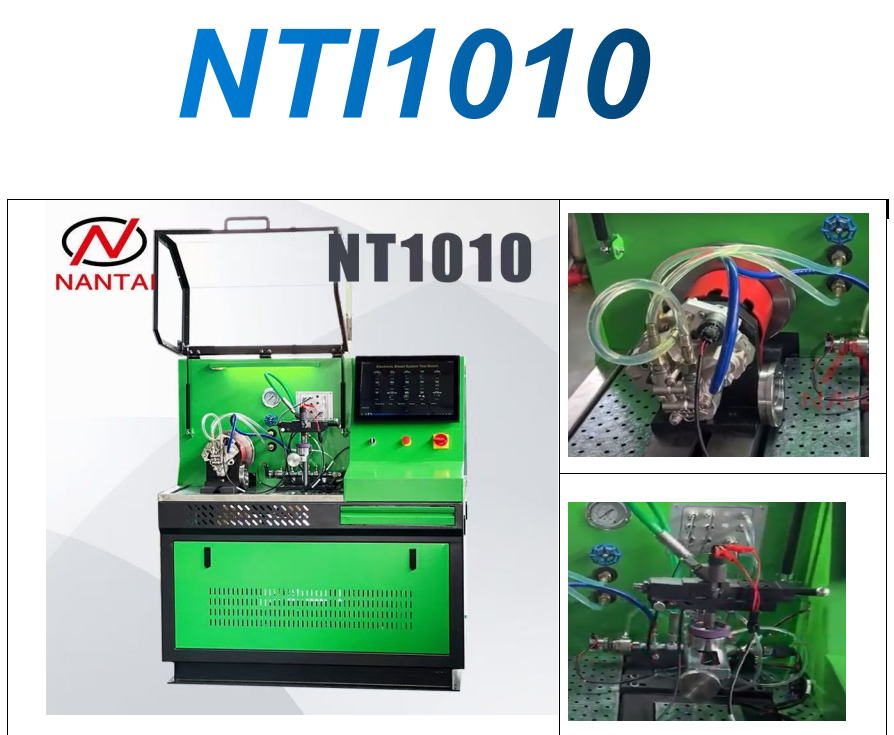

NTI1010 COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.



1.2 System Application:



1.21 Common rail Injectors



1. Cleaning high pressure for the impurities inside of the injectors.

2. Atomization test: to judge whether the injector is blocked through the atomization effect.

3. Sealing test: check whether nozzle, nozzle cap nut and solenoid valve leaks oil.

4. Testing the injection and return volume under: VL. TL. LL. VE status.

5. Test automatically and test 1 injector at one time.

6. Injector Inductance and Resistance

7. QR coding（BOSCH, DELPHI, DENSO SIEMENS）

8. AHE testing ( Optional)



1.22 Common rail pumps



1. Automatically test injection and return volume, pump chamber pressure, feeding pressure and sealing performance for BOSCH, SIEMENS DENSO , DELPHI common rail pumps.

2.Test common rail pumps（ BOSCH CP1, CP2, CP3 , DENSO HP2, HP3, HP0, DELPHI, SISMENS）

3.Automatically test special DENSO HP0 double electromagnetic sensor, single electromagnetic sensor and so on DNESO Pumps.

4.CAT320D pump testing（Optional)

5. DENSO HP5 HP6 pump testing ( Optional)



1.23 System advantage:



1. Full automatic operation with Windows7 system.

2. Original Bosch testing database: current curve can be set. Test accuracy similar with world leading test bench.

3. It include more than 7300 types testing data of BOSCH, DENSO. DELPHI SIEMENS injectors and pumps. The database can be edited, modified and regularly updated.

4. Self-protection under overheat, oil mist , over pressure and low oil level.

5. Remote control is convenient for service and software upgrade.

6. Include CHINESE ENGLISH, SPANISH, RUSSIA language etc.. which are proper for global using.



1.3Technical parameters



1. Main motor speed: 0-4000 r/min, can be adjustable

2. Motor power: 7.5kw/11KW/15KW/18.5KW

3. Fuel Injector open voltage

  Control range: 12v, 80v, 150v

   Control accuracy: phase adjustment

4.Injector opening frequency control: 0-1000HZ

  Control accuracy: 1HZ

5.Fuel injector hold time

  Control range: 0-65535us

6.Delivery oil count

  Control times: 0-1000times

  Control accuracy: 1 times

7. Fuel pressure control: 0-2500 bar

  Control accuracy: 1bar

8.Electronic power: 3 phase 380V/3 phase 220v



1.4 Main Functions:



1. Detection of the common rail injectors: WARM, Leakage , maximum injection, middle speed, minimum（start）spraying, pre-injection, return oil quantity.

2. Cleaning of nozzles.

3. Detection: Common rail pressure sensor, pressure regulator.

4. Testing environment: Oil temperature regulation, counting measure, adjust the common rail pressure, also can adjust the injection pulse width and duty cycle.

5. Support system: BOSCH, DELPHI, DENSO,SIEMENS ,CAT
