CR718 COMMON RAIL SYSTEM TEST BENCH
2018/12/10 12:34:59    本站    490

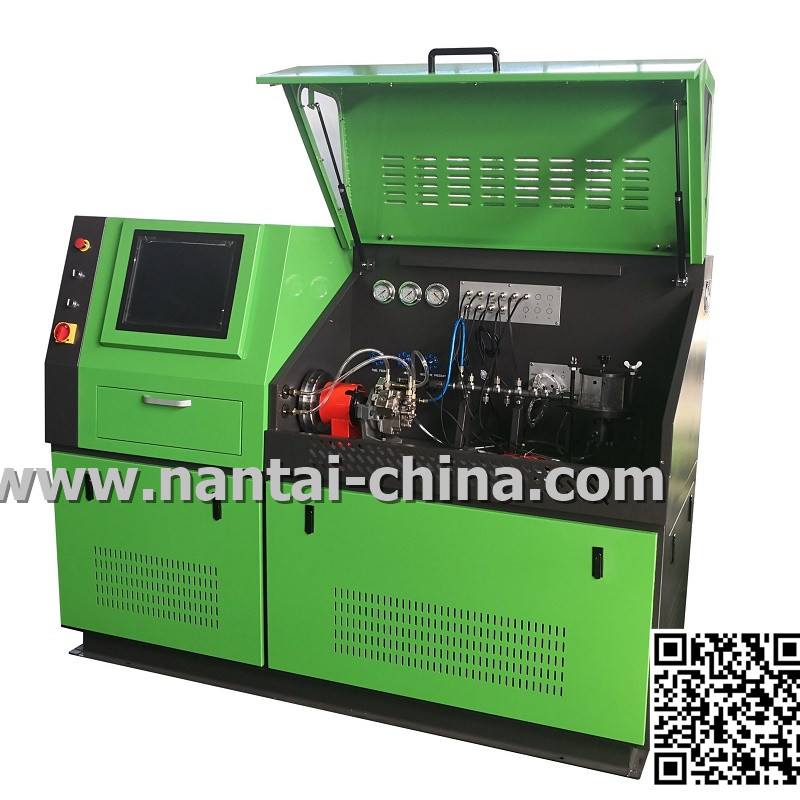

CR718 COMMON RAIL SYSTEM TEST BENCH

CR718  common rail injector and pump test bench, use import the flow sensor for the measurement means, it can test common rail  injector  and common rail pump,it can add EUI/EUP CAMBOX and HEUI function.

  Function

1. High-precision flow measurement, it use imported flow sensor, high precision, good repeatability.

2. Test a comprehensive, test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection.

3. It can test BOSH, DENSO, DELPHI, SIEMENS, CAT etc injector

4. Machine low noise, it is using frequency control, speed prefabricated, low noise, no impact.

5. Advanced control, a key selection, the whole process of detection.

6. Massive data,

7.Open data management, the user can add the injector data itself, especially for the new fuel injector standard oil calibration.

8.It with pump flow sensor, it works with high pressure rail sensor to test common rail pumps.

9.It can test CP1, CP2,CP3 ,HP0 etc high pressure common rail pumps.

10. It with Cambox can test EUI EUP and HEUI

  Technical parameter

1. Out put power: 11kw

2. Input power: 380V/50hz/3phase or 220V/60hz/3phase

3. Rotation speed: 0~3000RPM

4. Rail high pressure: 0~2000 bar

5. Test oil filtered precision: 5μ

6. Oil tank: 60L

7. Size: 1900*900*1500

8. Wight: 800kg
